API Kelly Valve 30MPA 70MPA 105MPA XS-140 for High Pressure Systems

Brand Name : ATO

Model Number : XS-140

Certification : API

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10 PIECES PER MONTH

Delivery Time : 10-15 WORK DAYS

Packaging Details : WOODEN BOX

Contact Now

Kelly Valve is an effective manually operated ball type valve for the drill stem. It located within the drill string that allow for free-passage of drilling fluid without pressure loss and are specifically designed for effective control of blow outs and/or mud loss control. The kelly valve is divided into upper kelly cock valve and lower kelly cock valve. The upper kelly cock is connected between lower end of swivel and upper end of kelly; the lower kelly valve is connected between lower end of kelly saver sub. The kelly valve can be opened on or closed off by only turning the special operating wrench at 90° according to indicating direction. During drilling operation, both upper and lower Kelly cocks should be connected to prevent accident during drilling operation.

Major repair kits available for every valve.

Comes with certified test report.

Identifiable open and close markings.

Can be H2S corrosion resistant as per NACE MRO175

Model	O.D.(mm)	Thread connection	I.D. (mm)	Working pressure(Mpa)
XS-86	86	NC26	30	30,70,105
XS-105	105	NC31	40	30,70,105
XS-111	111	NC31	40	30,70,105
XS-121	121	NC38	44.5	30,70,105
XS-127	127	NC38	44.5	30,70,105
XS-140	140	NC40	57.2	30,70,105
XS-XS146	146	4-1/2 REG	57.2/44.5	30,70,105
XS-159	159	NC46	61	30,70,105
XS-165	165	NC46	61	30,70,105
XS-168	168	NC50	71.4	30,70,105
XS-178	178	NC50,5-1/2 FH	71.4	30,70,105
XS-XS197	197	6-5/8 REG	76.2	30,70,105
XS-XS200	200	6-5/8 REG	76.2	30,70,105

API Kelly Valve 30MPA 70MPA 105MPA XS-140 for High Pressure Systems

Product Tags:

API Kelly Valve

High Pressure Systems Kelly Valve

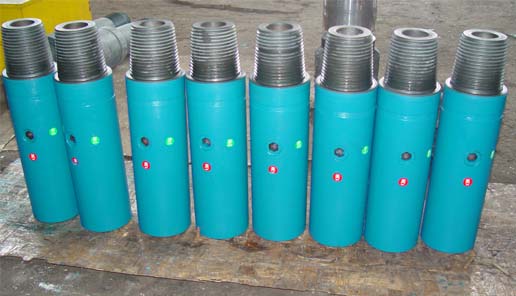

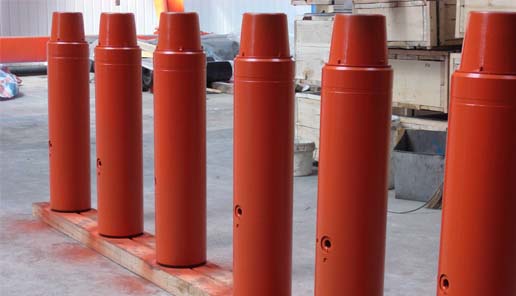

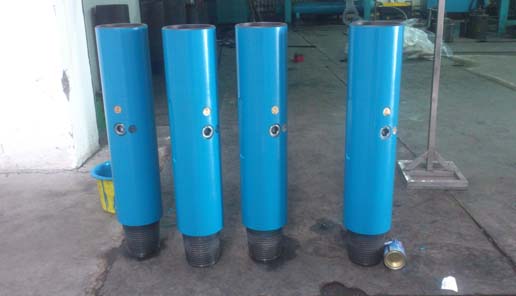

API Kelly Valve 30MPA 70MPA 105MPA XS-140 for High Pressure Systems Images
